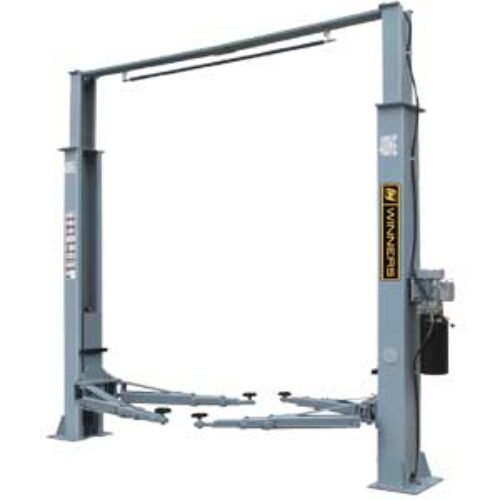

A Clear Floor lift version has no obstruction between the 2 posts.

They are considered ideal for when transmission jacks are constantly in use or cars with a low ride height.

The steel ropes and hydraulic pipes go over the top.

Code: SG40DX
Product: 4 Ton manual release – Clear floor
Data Sheet: Download product specs
Certification: ISO 9000/9001 CE
*Colours and designs may differ

Collect ex warehouse Jet Park
Goods will be released once funds reflect

Important notice!

• Lift must be installed indoors.
• Approved installers must be used when installing lifts or warranty will be void.
• All electrical connections must be done by a qualified Electrician, and each unit requires a separate isolator.

Technical information

Lift

Lifting capacity: 4000kg
Maximum lifting height: 1900mm
Minimum lifting height: 85mm
Overall height: 3605mm
Overall width: 3426mm
Width between columns: 2803mm
Maximum vehicle width: 2576mm
Lifting time: 40s
Lowering time: 60s
Noise level: 70 dB(A0/1m
Average weight of package: 620kg

Electric motor
Voltage: 220V
Power: 2.2 Kw
Speed: 2850rpm

Power unit

Type: Gear
Flow rate: 4.8 cm³/g
Continuous working pressure: 170 bar – 190 bar
Peak pressure: 210 bar

Weights & dimensions
Packaging dimensions 1/3: 2950*520*700 mm
Packaging weight 1/3: 600 kg
Packaging dimensions 2/3: 970*90*350 mm
Packaging weight 2/3: 25 kg
Packaging dimensions 3/3: 1780*480*420 mm
Packaging weight 3/3: 64 kg
