The ideal combination for dispensing oil in any workplace.

The compact trolley has two fixed wheels and two castors that make it very easy to maneuverer.

It is equipped with a pump support and a drum clamping mechanism designed for a 210 Liter drum.

The pneumatic pump is able to dispense 14 Liters per minute and the digital oil gun displays both short and long term measurements.

The short term display can be easily reset before the gun is needed for the next vehicle, however the total amount cannot be reset which helps with stock control.

Code: K99235

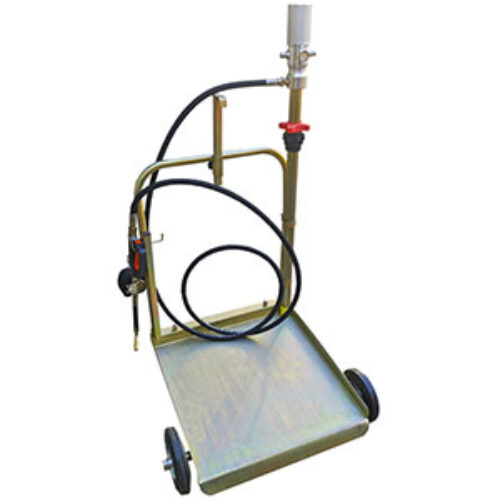

Product: Trolley – mounted oil dispenser with digital oil gun
Data Sheet: Download product specs
*Colours and designs may differ
1 year warranty

Technical information digital oil meter gun
Flow rate range: 0-35 L/m
Operating Pressure (maximum): 1500 psi/100 Bar
Working temperature: -10°C – +50C
Accuracy (non- approved version): ± 0.5%
Accuracy (approved version): ± 0.3%
Applied viscosity of fluid: 8-5000mPas
5- digit LCD display: Liters
Inlet and outlet connections: ½” BSP
Technical information oil pump
Compression ratio: 5:1
Operating pressure: 5-8 Bar
Air consumption: 240 Liter per minute
Capacity: 14 Liters per minute
Max oil viscosity: 130SAE
Operating temperature: 10°-50°C
Noise level: 82dB
Packaging dimensions 1/3: 660*810*100 mm
Packaging weight 1/3: 23 kg
Packaging dimensions 2/3: 1290*130*130 mm
Packaging weight 2/3: 7 kg
Packaging dimensions 3/3: 630*140*140 mm
Packaging weight 3/3: 2.5kg
