Perfect All-Rounder. This 30/15T jack takes Winntec air-hydraulic technology to its very extreme. its 1st stage lifts 30T and reaches 220mm.

The 2nd stage, with 15T capacity, reaches another 80mm resulting in a 300mm maximum height without extension.with a 150mm low profile this jack is ideal for modern low ground-clearance vehicles.

The jack comes with 3 extensions (10-70-120mm) and has a manual valve that can close the oil
channel (during transport).

Model: Y432001
Product: 20T Air-hydraulic trolley jack
*Colours and designs may differ

Technical information

Min height: 185mm
Max height: 373mm
Hydraulic stroke: 108
Ext screw: 80mm
Length: 580mm
Width: 320mm
Weight: 47kg

Dual stage air service jack with a low entrance height of just 150mm and hard chromed piston.

With 32/16 Ton capacity and its compact dimensions, this jack is ideal for both workshop and road assistance duty.

The controller allows the jack to ascend and descend with air.

Air controlled descent ensures maximum safety while dealing with heavy loads.

This Y432032 comes with 2 extensions (45mm-100mm). As an option we offer a 260mm extension which is a great help when lifting trailers.

Model: Y432032
Product: 32/16T air-hydraulic trolley jack (2 stage)

*Colours and designs may differ

Technical information

A 150mm
B 73mm
C 66mm
D 480mm
E 1300mm
F 290mm

The Winntec Long Chassis Jacks are constructed for heavy-duty lifting.

An automatic overload safety valve, efficient foot-operated pump and swivel castors come as standard.

Winntec are an established and respected manufacturer, developer and supplier of quality, efficient and extremely reliable garage equipment – suitable for a vast range of applications.

Model: Y421000
Product: 10 Ton long reach trolley jack
*Colours and designs may differ

Important notice!
• Trolley jacks are not a long-term support to lift vehicles.

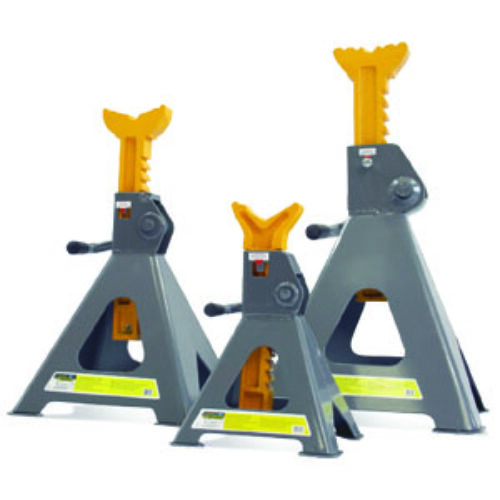

• Jack stands/trestles to be used with trolley jacks as they are designed to hold weight of
the vehicle for extended periods – as per SANS71 & Driven Machinery ACT.
• The load must be supported by a load bearing structure.

Technical information

Min height: 160mm
Max height: 680mm
Width: 485mm
Length: 1635mm
Height: 1355mm
Weight: 145kg

The Winntec 2T Low-Profile Jack has an ultra-low profile design combined with ‘Turbo-Lift’ technology.

Equipped with a hydraulic unit with rapid lift system that ensures that the jack is just as fast unloaded as with loaded handle.

The polyurethane wheels are noise reducing and preventing damage to garage floors, indispensable if they are provided of an oil-tight coating.

The saddle is covered by a rubber protective pad, this prevents damage to the underside of the chassis

Model: Y420250
Product: 2 Ton Low profile trolley jack

Important notice!

• Trolley jacks are not a long-term support to lift vehicles.
• Jack stands/trestles to be used with trolley jacks as they are designed to hold weight of the vehicle for extended periods – as per SANS71 & Driven Machinery ACT.
• The load must be supported by a load bearing structure.

Technical information
Min height: 75mm
Max height: 510mm
Width: 343mm
Length: 686mm
Weight: 34kg

Winntec Bottle Jacks are versatile, for use in pushing, pressing, straightening, and other applications.

Cast iron bases, polished main rams and solid chrome pump linkage are as standard.

Winntec are an established and respected manufacturer, developer and supplier of quality, efficient and extremely reliable garage equipment – suitable for a vast range of applications.

Model: Y3420E
Product: Industrial 20 Ton bottle Jack

Technical information
Capacity: 20ton
Min height: 242mm
Max height: 442mm
Net weight: 9.2kg

Robust 12-ton hydraulic bottle jack designed for heavy-duty lifting tasks.

Engineered with precision, it is ideal for automotive repairs, truck servicing, and industrial applications requiring reliable lifting solutions.

Its compact design ensures easy storage and portability, making it a versatile tool for both professionals and DIY enthusiasts.

Model: Y3412E
Product: Industrial 12 Ton bottle Jack

Technical information
Capacity: 12ton
Min height: 230mm
Max height: 440mm
Net weight: 6.32kg

Our newly upgraded floor jack unites an ultra-low-profile design, high reach, our unique 2-SPEED LOWERING technology, and a TURBO LIFTER pump system with major engineering and utility enhancements.

Featuring a fully covered oversized saddle pad, lower handle bumper, built-in magnetic tray, and an advanced fully welded power unit, the Plus Series ensures maximum workshop performance, zero leakage vulnerabilities, and an extended life cycle.

Model: Y420333
Product: 3 Ton low profile turbo lift trolley jack (plus series)
*Colours and designs may differ

Technical information

Min height: 76mm
Max height: 503mm
Width: 346mm
Length: 672mm
Weight: 31kg
Packaging dimensions: 805*400*195 mm
Packaging weight: 34 kg

High-quality pneumatic jack designed for lifting heavy loads, making it ideal for use in automotive workshops and industrial settings.

It is engineered with a focus on durability and performance.

Model: S60-2J
Product: 60/40 ton air-hydraulic trolley jack (2 stage)

*Colours and designs may differ

Technical information

Working air pressure: 0.9 – 1.2 Mpa
Min height: 220 mm
Max height: 580 mm
Lifting height:
– 60t: 121 mm
– 40t: 119 mm
Extension height: 75 mm + 45 mm
